Can an underground bus duct be extended?

Hey there! As a supplier of Underground Bus Duct, I often get asked a pretty common question: "Can an underground bus duct be extended?" Well, let's dive right into this topic and break it down.

First off, let's understand what an underground bus duct is. An Underground Bus Duct is a crucial part of an electrical distribution system. It's designed to carry electrical power underground, which is super handy in areas where overhead lines aren't an option or for aesthetic reasons. These bus ducts are made with high - quality materials to ensure durability and safety in the harsh underground environment.

Now, to answer the big question: yes, an underground bus duct can be extended. But like most things in the electrical world, it's not as simple as just hooking up another piece. There are several factors that need to be considered before you go ahead with an extension.

Technical Considerations

Load Capacity

One of the most important things to think about is the load capacity of the existing bus duct. You can't just add on an extension without knowing if the system can handle the extra electrical load. If the load capacity of the original bus duct is already close to its limit, adding an extension could lead to overheating and potential system failures. It's like trying to fit a big piece of furniture into a small room - it's just not going to work.

Before extending, you need to calculate the total electrical load that will be placed on the extended bus duct. This includes all the equipment that will be connected to it, such as motors, lights, and other electrical appliances. If the new load exceeds the capacity of the existing bus duct, you may need to upgrade the entire system or at least part of it.

Electrical Compatibility

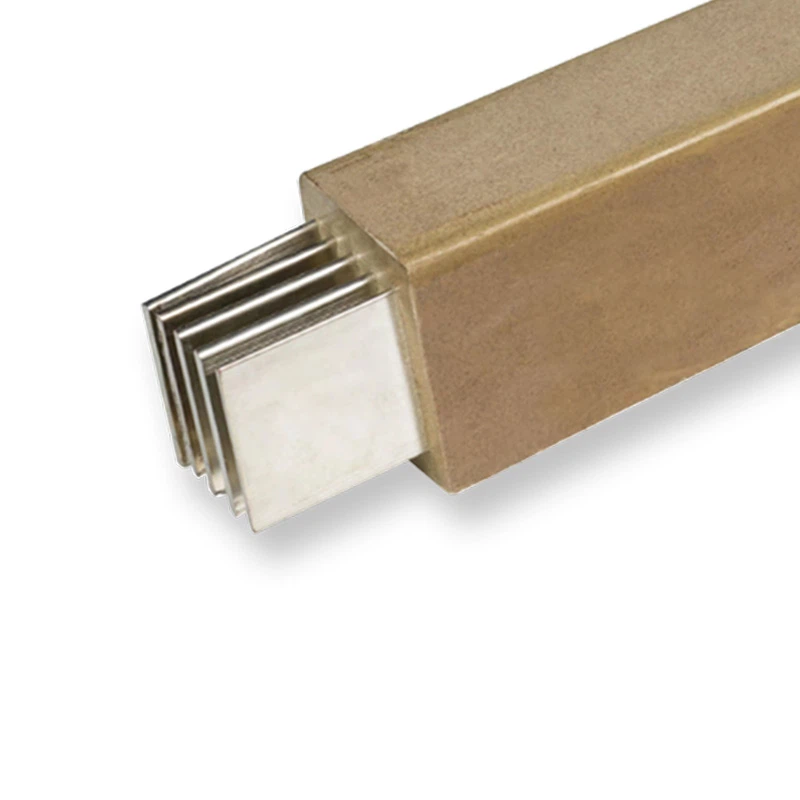

Another key factor is electrical compatibility. The new section of the bus duct needs to be compatible with the existing one in terms of voltage, current rating, and phase configuration. For example, if the existing bus duct is a 3 - Phase Cast Resin Busduct, the extension should also be a 3 - phase system with the same voltage and current ratings.

Using incompatible components can lead to electrical imbalances, which can cause damage to the equipment and pose a safety hazard. It's like trying to connect a European electrical appliance to a North American power outlet without a proper adapter - it's just asking for trouble.

Physical Dimensions

The physical dimensions of the new and existing bus ducts also need to match. The connectors, flanges, and other mechanical parts should fit together perfectly. If there are any mismatches, it can lead to poor electrical connections, which can result in power losses and potential arcing.

You also need to consider the space available for the extension. Underground installations can be tricky because space is often limited. You need to make sure that there is enough room to install the new section of the bus duct without causing any interference with other underground utilities or structures.

Installation Considerations

Environmental Conditions

Underground environments can be harsh. The bus duct will be exposed to moisture, soil pressure, and other environmental factors. When extending the bus duct, you need to ensure that the new section is properly protected against these conditions.

For example, if the area is prone to flooding, the bus duct should be waterproof. If the soil is acidic, the bus duct should be made of materials that are resistant to corrosion. A Cast Resin Busduct is a great option in these situations because it offers excellent protection against moisture and corrosion.

Installation Techniques

Proper installation techniques are crucial for a successful extension. The new section of the bus duct needs to be installed in a way that ensures good electrical and mechanical connections. This may involve using specialized tools and following specific installation procedures.

It's also important to have experienced technicians carry out the installation. They know how to handle the bus duct properly and can ensure that all the connections are secure. A poorly installed extension can lead to a host of problems, including power outages and safety risks.

Cost Considerations

Extending an underground bus duct can be expensive. You need to factor in the cost of the new bus duct section, installation labor, and any necessary upgrades to the existing system. It's important to get a detailed cost estimate before starting the project.

However, in some cases, extending the bus duct may be more cost - effective than installing a completely new electrical distribution system. For example, if the existing bus duct is in good condition and only needs a small extension, it may be a more economical solution.

Advantages of Extending an Underground Bus Duct

Despite the challenges, there are several advantages to extending an underground bus duct.

Cost - Savings

As mentioned earlier, extending an existing bus duct can be more cost - effective than installing a new system. You can avoid the high costs associated with trenching, laying new cables, and installing new electrical infrastructure.

Minimized Disruption

Extending the bus duct causes less disruption to the surrounding area compared to installing a new system. Since the existing bus duct is already in place, there is no need to dig up large areas of the ground. This is especially important in urban areas where there are many other underground utilities and structures.

Flexibility

An extended bus duct provides more flexibility in terms of electrical distribution. You can easily add new equipment or expand your electrical system as your needs change. It's like having a modular system that can be adjusted and adapted over time.

Conclusion

So, can an underground bus duct be extended? The answer is yes, but it's not a decision to be taken lightly. You need to carefully consider the technical, installation, and cost factors before proceeding. If you're unsure about any aspect of the extension, it's always a good idea to consult with a professional electrical engineer.

As a supplier of Underground Bus Duct, I'm here to help you with all your bus duct needs. Whether you're looking to extend an existing system or install a new one, we have the expertise and high - quality products to ensure a successful project. If you're interested in learning more or discussing a potential project, don't hesitate to reach out. We're ready to work with you to find the best solution for your electrical distribution needs.

References

• Electrical Installation Handbook, Schneider Electric
• National Electrical Code (NEC)
